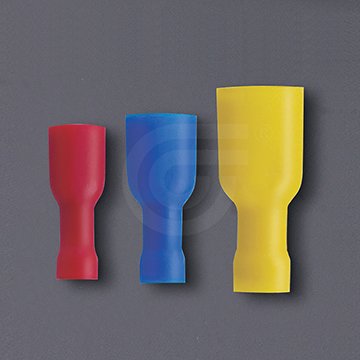

Vinyl-Fully Insulated Female Disconnectors
Model :FVU1.25
Disconnectors feature a standard style tongue and are built to ensure secure connectivity.
– Disconnect can be inserted and removed from the male tab without the use of tools for lower installation cost.
– Fully insulated design provides protection from electrical shorts.
– Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection.
Material : Brass tube with tin plated end sleeves with insulation PVC
Color : Please refer to the specification chart below
Application : Energy, Automation, Rail Transpotation, Electrical Wiring
庫存單位 FVU1.25 分類 Crimp Disconnectors, Wire Connection
Specification Information
Certificate
Specifications

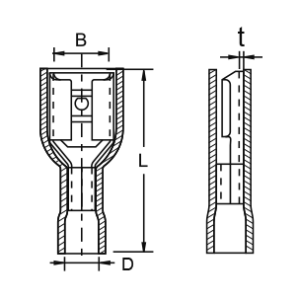

Part.No | color | Dimension | To fit Tab size | Wire Range | ||||
D | B | L | t | AWG | mm2 | |||
FVU1.25-4.8S | Red | 4 | 5 | 20 | 0.4 | 4.8×0.5 | 22-16 | 0.5-1.5 |
FVU1.25-4.8 | Red | 4 | 5 | 20 | 0.4 | 4.8×0.8 | 22-16 | 0.5-1.5 |
FVU1.25-6.4 | Red | 4 | 6.7 | 22 | 0.4 | 6.4×0.8 | 22-16 | 0.5-1.5 |
FVU2-4.8S | Blue | 4.5 | 5 | 20 | 0.4 | 4.8×0.5 | 16-14 | 1.5-2.5 |
FVU2-4.8 | Blue | 4.5 | 5 | 20 | 0.4 | 4.8×0.8 | 16-14 | 1.5-2.5 |
FVU2-6.4 | Blue | 4.5 | 6.7 | 22.5 | 0.4 | 6.4×0.8 | 16-14 | 1.5-2.5 |
FVU5.5-4.8S | Yellow | 5.5 | 5 | 23.5 | 0.4 | 4.8×0.5 | 12-10 | 4-6 |
FVU5.5-4.8 | Yellow | 5.5 | 5 | 23.5 | 0.4 | 4.8×0.8 | 12-10 | 4-6 |
FVU5.5-6.4 | Yellow | 5.5 | 6.7 | 24 | 0.4 | 6.4×0.8 | 12-10 | 4-6 |
