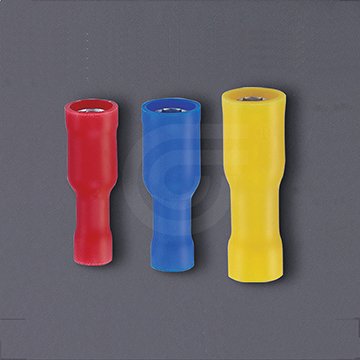

Vinyl-Fully Insulated Female Bullet connectors

Model :FVBU1.25

Bullet connectors feature a standard style tongue and are built to ensure secure connectivity.
– Male bullet connector couples with female one.
– Male bullet connector can be inserted and removed from the female disconnect without the use of tools for lower installation cost.
– Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications.


Material : Brass tube with tin plated end sleeves with insulation PVC
Color : Please refer to the specification chart below

庫存單位 FVBU1.25 分類 ,

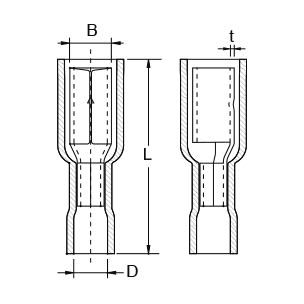

Part.NocolorDimensionWire Range
DBLtAWGmm2
FVBU1.25-156Red3.34.65230.422-160.5-1.5
FVBU2-156Blue44.6523.50.416-141.5-2.5
FVBU2-195Blue45.6523.50.416-141.5-2.5
FVBU5.5-156Yellow64.6527.50.412-104-6
FVBU5.5-195Yellow5.35.6523.50.412-104-6
