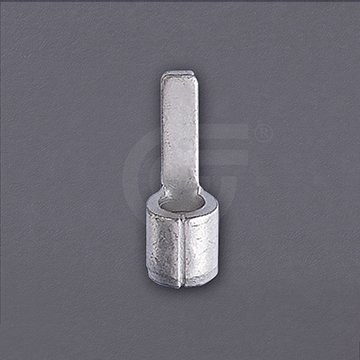

Non-Insulated Blade Terminals
Model :B1.25
Blade Terminals feature a standard style tongue and are built to ensure secure connectivity.
– Flat blade design to prevent damage to the wire from over tightening, resulting in a reliable electrical connection.
– For use with blade-type terminal blocks.
– Insulation support helps to prevent wire damage in bending applications.
Material : Copper tube with tin plated
Color : Please refer to the specification chart below
Specification Information
Certificate
Specifications
| Part.No | Dimension | Wire Range | |||||
| d1 mm | B mm | F mm | L mm | t mm | AWG | mm2 | |
| B1.25-9SB | 1.9 | 2.3 | 9 | 14 | 0.75 | 22-16 | 0.5-1.5 |
| B1.25-9B | 1.9 | 2.7 | 9 | 14 | 0.75 | 22-17 | 0.5-1.5 |
| B1.25-12B | 1.9 | 3 | 12 | 16 | 0.75 | 22-18 | 0.5-1.5 |
| B1.25-14.5B | 1.9 | 3 | 14.5 | 19 | 0.75 | 22-19 | 0.5-1.5 |
| B1.25-18B | 1.9 | 2.45 | 18 | 23 | 0.75 | 22-20 | 0.5-1.5 |
| B2-9B | 2.5 | 2.8 | 9 | 14 | 0.8 | 16-14 | 1.5-2.5 |
| B2-16B | 2.5 | 2.9 | 16 | 21 | 0.8 | 16-15 | 1.5-2.6 |
| B2-18B | 2.5 | 2.45 | 18 | 23 | 0.8 | 16-16 | 1.5-2.7 |
| B5.5-10B | 3.6 | 2.8 | 10 | 16.5 | 1 | 12-10 | 4-6 |
| B5.5-13B | 3.6 | 4.6 | 13 | 19.5 | 1 | 12-11 | 4-6 |
| B5.5-18B | 3.6 | 4.5 | 18 | 24.5 | 1 | 12-12 | 4-6 |
