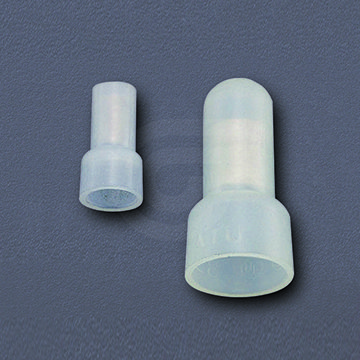

Closed End Crimp Connectors

Model :C

Electrical wire connectors and tools are designed with features requested by electricians for construction, industrial, maintenance, OEM and irrigation applications.
– Four models cover a wide range of wire combinations from 22 AWG strands through 10 AWG stranded.
– Compact design fits easily into tight locations.
– Flared skirt ensures easily wire entry and protects against turned-back strands
– UL Listed for 300V maximum building wiring; temperature rated at 105°C (221°F) maximum.
– P/N with postfix V0 means the shell is UL 94V-0 flame-retardant.
– P/N with postfix °-L° means the tube is made of aluminum.


Material : UL approved 94V-2 Polyamide 6.6, copper tube or aluminum tube
Color : Please refer to the specification chart below

庫存單位 C 分類 , Features:

Part.NocolorDimensionsuitable crimping toolSuitable Wiretemp RatingVoltage
A mmB mmC mmD mmE mmAWGmm2
C3Natural2.67.95.16.819.3GIT-517C122-160.5-1.5105°C (221°F)300V
C4Natural3.27.95.66.820.1GIT-517C122-140.5-2.5105°C (221°F)300V
C5Natural4.310.37.17.824.6GIT-517C1/GIT-517C522-100.5-6105°C (221°F)300V
C8Natural5.212.29.28.627GIT-517C522-100.5-6105°C (221°F)300V
C3-LNatural2.56.55.16.418GIT-517C122-160.5-1.5105°C (221°F)300V
C4-LNatural3.17.85.7820.1GIT-517C122-140.5-2.5105°C (221°F)300V
C5-LNatural4.310.67.310.724.8GIT-517C1/GIT-517C522-100.5-6105°C (221°F)300V
C3V0White2.56.55.16.418GIT-517C122-160.5-1.5105°C (221°F)300V
C4V0White3.17.85.7820.1GIT-517C122-140.5-2.5105°C (221°F)300V
C5V0White4.310.67.310.724.8GIT-517C1/GIT-517C522-100.5-6105°C (221°F)300V
C3-LV0White2.56.55.16.418GIT-517C122-160.5-1.5105°C (221°F)300V
C4-LV0White3.17.85.7820.1GIT-517C122-140.5-2.5105°C (221°F)300V
C5-LV0White4.310.67.310.724.8GIT-517C1/GIT-517C522-100.5-6105°C (221°F)300V
