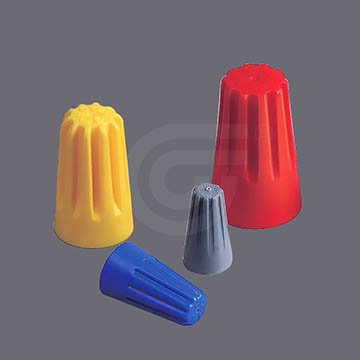

Twist-On Wire Connectors

Model :E

Electrical wire connectors and tools are designed with features requested by electricians for construction, industrial, maintenance, OEM and irrigation applications.
– Five color-coded models cover a full range of wire sizes from 22-10 AWG.
– Fixed, square-wire spring maintains a strong grip that wire connections will not relax over time.
– No pre-twisting required – positive grip design provides fast, easy installation.
– Deep, wide skirt helps protect against flash-over and turned-back strands for maximum dielectric protection.
– Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F).
– UL Listed to 486C and comply with Federal Specification W-S-610E

Material : UL approved PP +  steel spring
Color : Please refer to the specification chart below

庫存單位 E 分類 , Features:

Part.NocolorDimensionsuitabletemp RatingVoltage

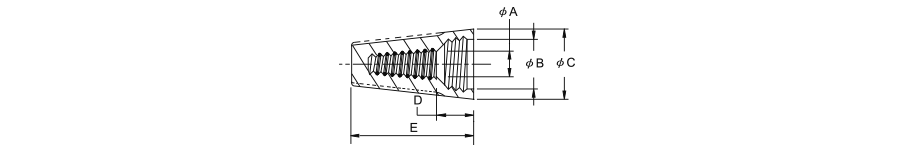

A mmB mmC mmD mmE mmAWGmm2
E-1gray568.53.514.722-180.5-0.75105°C (221°F)300V
E-2blue67.510.16.517.522-140.5-2.5105°C (221°F)300V
E-3orange6.28.211.2821.422-140.5-2.5105°C (221°F)600V
E-4yellow8.710.513.77.523.618-100.75-6105°C (221°F)600V
E-6red9.313.21610.12622-100.75-6105°C (221°F)600V
