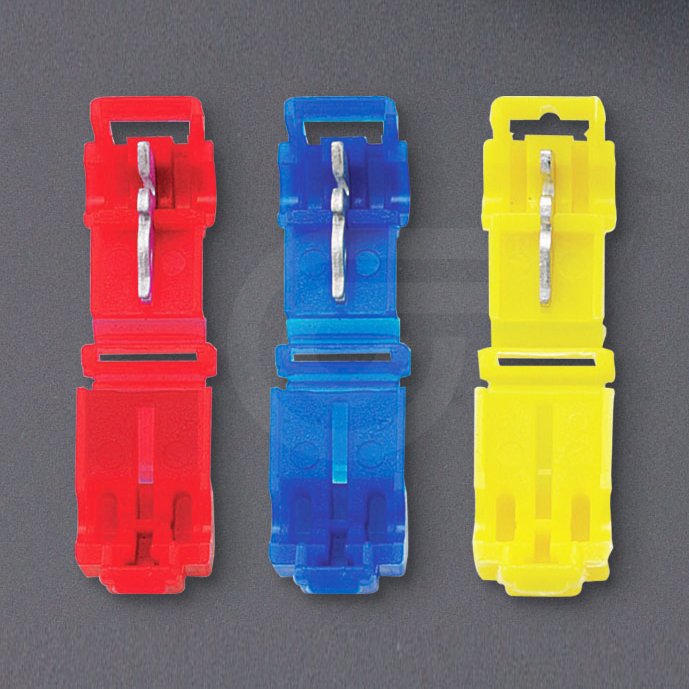

Quick Splices

Model :QSA

Quick splices feature a standard style tongue and are built to ensure secure connectivity.
– Metal connector can cut through the insulation of both wires and make a firm electrical connection between them, all in one action.
– The folding cover of the connector can be closed to provide further protection of the connection.


Material : Tin plated copper with PP housing
Color : Please refer to the specification chart below

庫存單位 QSA 分類 ,

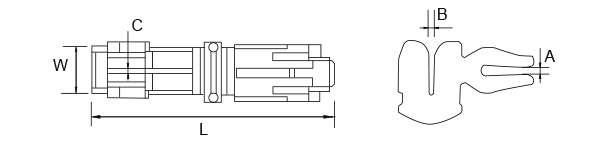

Part.NocolorDimensionWire Range
A mmB mmC mmW mmL mmAWG
QSA1.25 Red0.520.529.4350.822-16
QSA2Blue0.70.529.4350.816-14
QSA5.5Yellow1.20.529.4350.812-10
