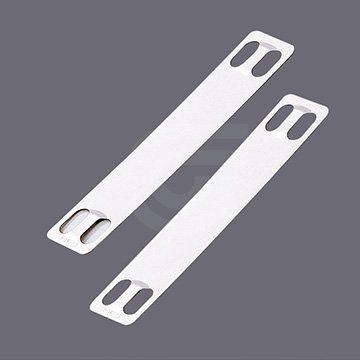

Stainless Steel Marker Plates
Model :GMP
– Marker plates or tags are used to clearly identify all wire harnesses.
– Stainless steel material is quality resistance to abrasion, corrosion and UV.
– Applicable for use at ducts, pipes, valves, power cables, chemical petroleum devices, oil refining plants, and other harsh environments.
– Quality resistance to abrasion, corrosion and UV that enables the tie adaptable to most of the harsh environment circumstances by providing long-lasting indication performance.
Material : SS304 / SS316
Color : Nature Color
Application : Energy, Automation, Rail Transpotation
Specification Information
Certificate
Specifications

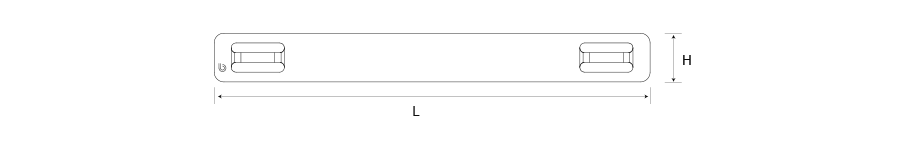

Part.No | Length | Width | Thickness . | Max.4.77mm(3/16″)characters per line | Max.Lines | Max.Ties Width | operating temperature | |||||
mm | inch | mm | inch | mm | inch | mm | inch | Max. | Min. | |||
GMP-8910R | 89 | 3.5 | 10 | 0.39 | 0.25 | 0.01 | 23 | 1 | 8 | 0.31 | 500°C(932°F) | -80°C(-112°F) |
GMP-8919R | 89 | 3.5 | 19 | 0.75 | 0.25 | 0.01 | 23 | 3 | 8 | 0.31 | 500°C(932°F) | -80°C(-112°F) |
