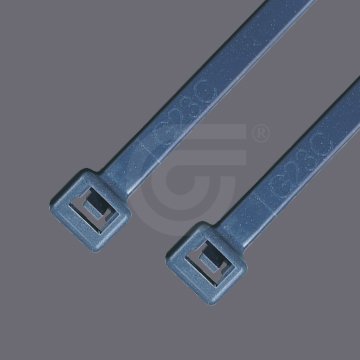

Metal Detectable Cable Ties
Model : GT-MD
– Designed for wiring maintenance and repair application in food processing and pharmaceutical industries
– The solution to reduce the risk of contamination from the fallen pieces of plastic cable ties in production line.
– Comply with FDA requirements and can support HACCP quality assurance
– Magnetic and metal detectable
Material : Metal particles embedded in Polyamide 6,6
Flammability rating – UL94HB
Color – Blue color. Easily visible for naked eyes
Specification Information
Certificate
Specifications
| Part.No | Length | Width | Max.Bundle Dia. | Min. Loop tensile strength | Operating temperature | |||||
| mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | |
| GT-100M-MD | 100 | 3.94 | 2.5 | 0.1 | 22 | 0.87 | 8.2 | 18 | 85° C (185° F) | -40° C (-40° F) |
| GT-150I-MD | 150 | 5.91 | 3.6 | 0.14 | 35 | 1.38 | 13.7 | 30 | 85° C (185° F) | -40° C (-40° F) |
| GT-200ST-MD | 200 | 7.87 | 4.8 | 0.19 | 50 | 1.97 | 22.6 | 50 | 85° C (185° F) | -40° C (-40° F) |
| GT-390ST-MD | 390 | 15.35 | 4.8 | 0.19 | 105 | 4.13 | 22.6 | 50 | 85° C (185° F) | -40° C (-40° F) |
| GT-390HD-S-MD | 390 | 15.35 | 7.6 | 0.29 | 108 | 4.25 | 54.5 | 120 | 85° C (185° F) | -40° C (-40° F) |
