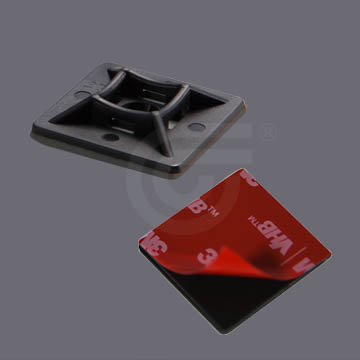

Polyamide 12 Self Adhesive Cable Tie Mounts



Model : HW-2A-PA12

– For corrosive, high humidity, long-hour exposure to UV light, or environments in low temperature.
– 3,600 hours of UV light exposure in the laboratory. Equivalent to 24 years of weathering life expectancy.(Note1)
– Excellent performance for applications in critical environments. Such as offshore, oil rigs, deserts, and cold areas.
– Suitable for attachments to galvanized surfaces.
– Available in either “screw mount” or “self adhesive mount”
– Screw or bolt mounting provides excellent security when used in areas of high vibration.
– 4-way entry for cable ties enabling flexible installation.
– 3M VHB adhesive tape
(Note1 – The data are observed under the conditions in laboratory and cannot be used as indication of product liability.)


Material – Polyamide 12
Flammability rating – UL94HB
Color – BlackOperating Temperature -40°C ~ 95°C


Weathering Test –





Part.No Length(L)
Width(W)
Height (H)Mounting HoleØ
Max. Tie Width
mminchmminchmminchmminchmminch
HW-2A-PA1212.70.512.70.53.20.13**3.20.13
HW-3A-PA12190.75190.754.40.173.50.14344
HW-4A-PA1227.81.0928.71.095.70.225.70.225.35.3
