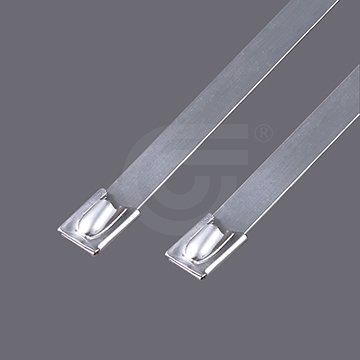

Ball Lock Type Stainless Steel Ties
Model :MLG
-Stainless steel ties are designed to secure hoses, cables, poles, pipes, and more when harsh environmental conditions may adversely affect the bundling application and used where corrosion, vibration, weathering, radiation, and temperature extremes are a concern, stainless steel ties can be used in virtually any indoor, outdoor, and underground application.
– Self-locking, ball bearing mechanism for quick and easy installation
– Ideal for petrochemical, industries, power stations, mining, ship-building, offshore, and other aggressive environments
– AISI 316 stainless steel for the most corrosive environments
– UV resistant, low smoke, halogen-free material
– All lengths are available
Material : SS304 / SS316
Color : Nature Color
Specification Information
Certificate
Specifications

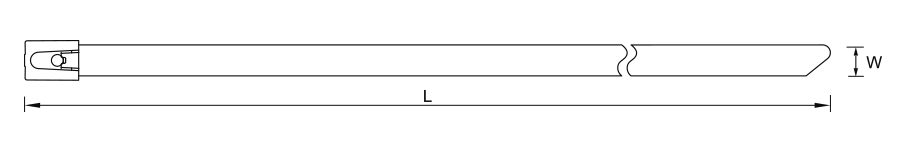

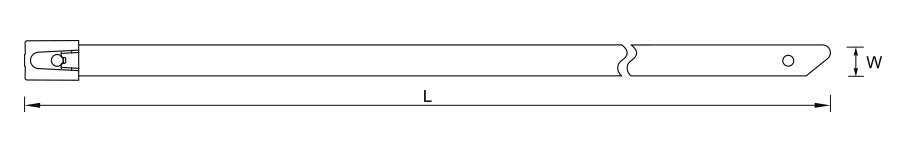

| Part.No | Length | Width | Thinckness | Max.Bundle Dia. | Min. Loop tensile strength | operating temperature | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | kgf | lbf | Max. | Min. | |
| MLG-130ST | 129 | 5.08 | 4.45 | 0.18 | 0.25 | 0.01 | 33 | 1.3 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-200ST | 200 | 7.78 | 4.45 | 0.18 | 0.25 | 0.01 | 50 | 1.97 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-300ST | 300 | 11.81 | 4.45 | 0.18 | 0.25 | 0.01 | 76 | 2.99 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-370ST | 370 | 14.57 | 4.45 | 0.18 | 0.25 | 0.01 | 102 | 4.02 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-520ST | 520 | 20.47 | 4.45 | 0.18 | 0.25 | 0.01 | 156 | 6.14 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-680ST | 680 | 26.77 | 4.45 | 0.18 | 0.25 | 0.01 | 207 | 8.15 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-840ST | 840 | 33.07 | 4.45 | 0.18 | 0.25 | 0.01 | 257 | 10.1 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-1050ST | 1050 | 41.34 | 4.45 | 0.18 | 0.25 | 0.01 | 319 | 12.56 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-200HD | 197 | 7.76 | 7.96 | 0.31 | 0.25 | 0.01 | 50 | 1.97 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-300HD | 300 | 11.81 | 7.96 | 0.31 | 0.25 | 0.01 | 76 | 2.99 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-370HD | 368 | 14.49 | 7.96 | 0.31 | 0.25 | 0.01 | 102 | 4.02 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-450HD | 450 | 17.72 | 7.96 | 0.31 | 0.25 | 0.01 | 135 | 5.31 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-500HD | 500 | 19.69 | 7.96 | 0.31 | 0.25 | 0.01 | 150 | 5.93 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-680HD | 680 | 26.77 | 7.96 | 0.31 | 0.25 | 0.01 | 207 | 8.15 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-720HD | 720 | 28.35 | 7.96 | 0.31 | 0.25 | 0.01 | 216 | 8.5 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-840HD | 840 | 33.07 | 7.96 | 0.31 | 0.25 | 0.01 | 257 | 10.1 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-1020HD | 1020 | 40.16 | 7.96 | 0.31 | 0.25 | 0.01 | 312 | 12.3 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-1050HD | 1050 | 41.34 | 7.96 | 0.31 | 0.25 | 0.01 | 319 | 12.56 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
