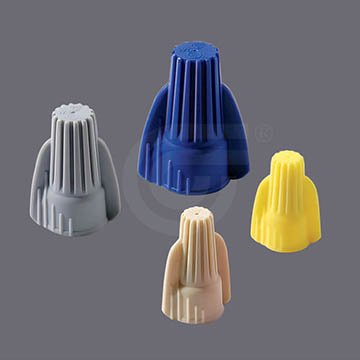

Winged Twist-On Insulated Wire Connectors

Model :W

Electrical wire connectors and tools are designed with features requested by electricians for construction, industrial, maintenance, OEM and irrigation applications.
– 5 color-coded models cover a full range of wire sizes from 22 through 6 AWG.
– Big wings with molded vertical ribs provide a secure grip for more torque on maximum wire combinations.
– Fixed, square-wire spring maintains a strong grip that wire connections will not relax over time.
– No pre-twisting required – positive grip design provides fast, easy installation.
– Deep skirt helps protect against flash-over and turned-back strands for maximum dielectric protection.
– Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F).
– UL Listed to 486C and comply with Federal Specification W-S-610E.

Material : UL approved PP +  steel spring
Color : Please refer to the specification chart below

庫存單位 W 分類 , Features:

Part.NocolorDimensionsuitable wire
temp RatingVoltage

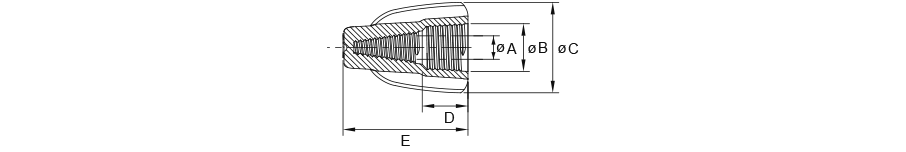

A mmB mmC mmD mmE mm
W1Yellow6.710198.725.918-10105°C (221°F)600V
W2Tan7.811.218.958.5528.922-8105°C (221°F)600V
W3Red9.413.322.99.231.918-8105°C (221°F)600V
W4Gray10.514.525.19.632.8318-8105°C (221°F)600V
W5Blue12.817.531.812.4540.214-6105°C (221°F)600V
