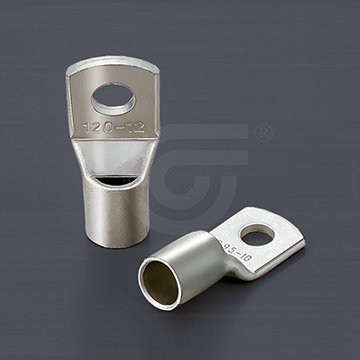

Copper/ Cable Lugs
Model :SC
Copper/Cable lugs feature a standard style tongue and are built to ensure secure connectivity.
– Made from superior grade of cooper to ensure most efficient electrical conductivity.
– Surface is electrolytically tin-plated to avoid oxidation.
– Comply with DIN 46234 for wire containment.
– Cooper tube is special designed to reach the most strength to resist vibration and pull out.
– The length of lug barrel is designed to allow easy and accurate crimping operation.
Material : Cooper
Color : Nature
Application : Energy, Automation, Rail Transpotation, Electrical Wiring
庫存單位 SC 分類 Copper Lugs, Wire Connection
Specification Information
Certificate
Specifications

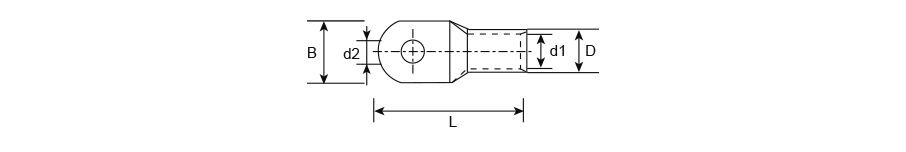

Part.No | Dimension | Wire Range | |||||
d1 mm | d2 mm | D mm | B mm | L mm | AWG | mm2 | |
SC10-6 | 5.0 | 6.4 | 7.0 | 12.4 | 27.0 | 8 | 10.0 |
SC10-8 | 5.0 | 8.4 | 7.0 | 12.4 | 27.0 | 8 | 10.0 |
SC16-8 | 5.8 | 8.4 | 7.8 | 12.4 | 31.0 | 6 | 16.0 |
SC25-8 | 7.5 | 8.4 | 9.5 | 15.5 | 34.0 | 4 | 25.0 |
SC35-8 | 8.6 | 8.4 | 11.4 | 16.5 | 38.0 | 2 | 35.0 |
SC35-10 | 8.6 | 10.5 | 11.4 | 17.5 | 40.5 | 2 | 35.0 |
SC50-8 | 9.6 | 8.4 | 12.6 | 18.0 | 43.5 | 1 | 50.0 |
SC50-10 | 9.6 | 10.5 | 12.6 | 18.0 | 43.5 | 1 | 50.0 |
SC50-12 | 9.6 | 13.0 | 12.6 | 18.0 | 43.5 | 1 | 50.0 |
SC70-10 | 12.0 | 10.5 | 15.0 | 21.8 | 50.0 | 2/0 | 70.0 |
SC95-10 | 13.5 | 10.5 | 17.4 | 25.0 | 55.0 | 3/0 | 95.0 |
SC95-12 | 13.5 | 13.0 | 17.4 | 25.0 | 55.0 | 3/0 | 95.0 |
SC120-10 | 15.0 | 10.5 | 19.8 | 28.4 | 60.0 | 4/0 | 120.0 |
SC120-12 | 15.0 | 13.0 | 19.8 | 28.4 | 60.0 | 4/0 | 120.0 |
SC120-14 | 15.0 | 15.0 | 19.8 | 28.4 | 64.0 | 4/0 | 120.0 |
SC150-12 | 16.5 | 13.0 | 21.2 | 30.5 | 69.0 | 250/300 | 150.0 |
SC150-14 | 16.5 | 15.0 | 21.2 | 30.5 | 69.0 | 250/300 | 150.0 |
SC150-16 | 16.5 | 17.0 | 21.2 | 30.5 | 69.0 | 250/300 | 150.0 |
SC185-12 | 18.5 | 15.0 | 23.5 | 34.0 | 78.0 | 300/350 | 185.0 |
SC185-14 | 18.5 | 15.0 | 23.5 | 34.0 | 78.0 | 300/350 | 185.0 |
SC185-16 | 18.5 | 17.0 | 23.5 | 34.0 | 64.0 | 300/350 | 185.0 |
SC240-12 | 21.5 | 13.0 | 26.5 | 39.0 | 92.0 | 400/450 | 240.0 |
SC240-14 | 21.5 | 15.0 | 26.5 | 39.0 | 92.0 | 400/450 | 240.0 |
SC240-16 | 21.5 | 17.0 | 26.5 | 39.0 | 92.0 | 400/450 | 240.0 |
SC300-12 | 23.5 | 13.0 | 30.0 | 43.0 | 101.0 | 500.0 | 300.0 |
SC300-14 | 23.5 | 15.0 | 30.0 | 43.0 | 101.0 | 500.0 | 300.0 |
SC300-16 | 23.5 | 17.0 | 30.0 | 43.0 | 101.0 | 500.0 | 300.0 |
