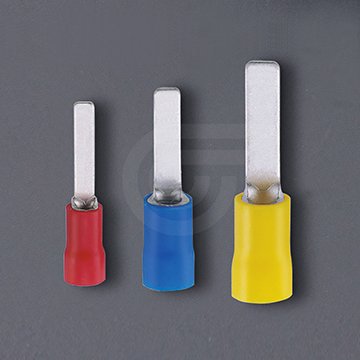

Vinyl-Insulated Blade Terminals
Model :VB1.25
Blade Terminals feature a standard style tongue and are built to ensure secure connectivity.
– Flat blade design to prevent damage to the wire from over tightening, resulting in a reliable electrical connection.
– For use with blade-type terminal blocks.
– Insulation support helps to prevent wire damage in bending applications.
– Brazed seam protects terminal barrel from splitting during the crimping process.
Material : Copper tube with tin plated and sleeves with insulation PVC
Color : Please refer to the specification chart below
Application : Energy, Automation, Rail Transpotation, Electrical Wiring
庫存單位 VB1.25 分類 Blade Crimp Terminals, Wire Connection
Specification Information
Certificate
Specifications

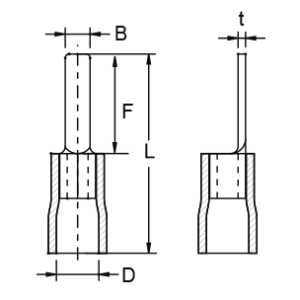

Part.No | color | Dimension | Wire Range | ||||
B mm | d2 mm | L mm | t mm | AWG | mm2 | ||
VB1.25-9S | Red | 4.3 | 2.3 | 19.5 | 0.75 | 22-16 | 0.5-1.5 |
VB1.25-9 | Red | 4.3 | 2.7 | 19.5 | 0.75 | 22-16 | 0.5-1.5 |
VB1.25-12 | Red | 4.3 | 3 | 25 | 0.75 | 22-16 | 0.5-1.5 |
VB1.25-14.5 | Red | 4.3 | 3 | 21.5 | 0.75 | 22-16 | 0.5-1.5 |
VB1.25-18 | Red | 4.3 | 2.45 | 28.5 | 0.75 | 22-16 | 0.5-1.5 |
VB2-9 | Blue | 4.7 | 2.8 | 20 | 0.8 | 16-14 | 1.5-2.5 |
VB2-16 | Blue | 4.7 | 2.9 | 27 | 0.8 | 16-15 | 1.5-2.5 |
VB2-18 | Blue | 4.7 | 2.45 | 29 | 0.8 | 16-16 | 1.5-2.5 |
VB5.5-10 | Yellow | 6.7 | 2.8 | 24 | 1 | 12-10 | 4-6 |
VB5.5-13 | Yellow | 6.7 | 4.5 | 27 | 1 | 12-10 | 4-6 |
VB5.5-18 | Yellow | 6.7 | 4.5 | 32 | 1 | 12-10 | 4-6 |
