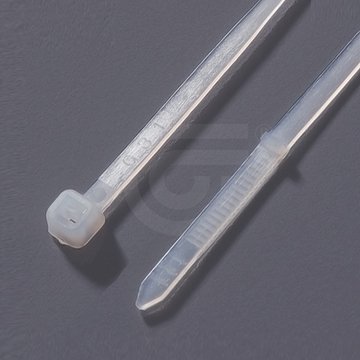

Stop Ties
Model : GT-A
– Cable ties with stopper.
– The unique “stop” tap design allows for a consistent fixed bundle diameter
Material : UL approved Polyamide 6.6, 94V-2
Color : All colors are available
Specification Information
Certificate
Specifications
| Part.No | Length | Width | Max.Bundle Dia. | Max.Bundle Dia. | MIn. Loop tensile strength | operating temperature | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | |
| GT-100MA | 102 | 4.02 | 2.5 | 0.1 | 17.5 | 0.69 | 22 | 0.87 | 8..2 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-150IA | 150 | 5.91 | 3.6 | 0.14 | 22.5 | 0.89 | 35 | 1.38 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-180IA | 180 | 7.09 | 3.6 | 0.14 | 24 | 0.94 | 44 | 1.73 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-300IA | 300 | 11.81 | 3.6 | 0.14 | 84.5 | 3.33 | 88 | 3.46 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-600IA | 600 | 23.62 | 2.4 | 0.09 | 170 | 6.69 | 175 | 6.89 | 8 | 17.6 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-800IA | 800 | 31.5 | 2.2 | 0.086 | 230 | 9.06 | 235 | 9.25 | 8 | 17.6 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-200HDA | 203 | 7.99 | 7.6 | 0.3 | 29.3 | 1.15 | 50 | 1.97 | 54.5 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
