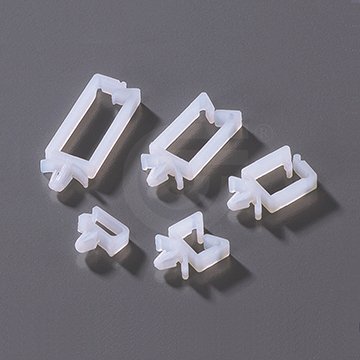

Wire Push in Clips

Model : SQ

– Push Mount wire saddles are designed to support light weigh wire bundles when properly applied on any clean, smooth, grease free surface.
– The shape of the wire saddle ensures that they can accept either single or multiple cables, whilst the design of the cable entry allows cables to be simply pushed into place.
– The self-locking feature ensures that once inside the saddle the wires cannot be removed accidentally. The arrowhead design of fixing ensures simple and secure installation and only needs access to the panel from one side.
– With the increased complexity of electronic and electrical installations, the use of the wire saddle enables cables to be installed using the minimum amount of space, a typical application would be in the frames/ rail of control cabinets.


Material : UL Approved Polyamide 6.6, UL94 V2
Color : Nature color

庫存單位 SQ 分類 , Features: ,

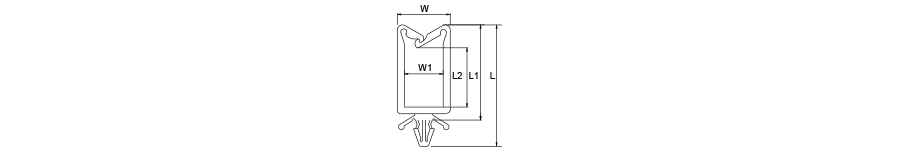

Part.NoA mmA inchB mmB inchC mmC inchD mmD inchHole Diameter mmHole Diameter inchPanel Thickness mmPanel Thickness inch
SQ-A13.10.5164.80.19150.5911.20.441ø4.80.1920.094
SQ-B18.10.713100.394150.5911.20.441ø4.80.1920.094
SQ-C27.11.067190.748150.5911.20.441ø4.80.1920.094
SQ-D35.31.39271.063150.5911.20.441ø4.80.1920.094
