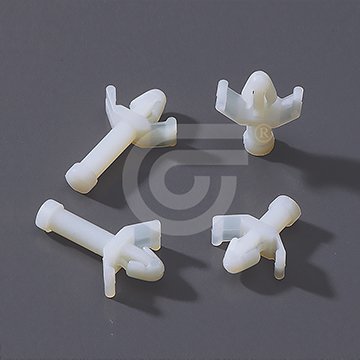

Rest Mount PCB Supports

Model : CBS-5P

– PCB supports are ideal for aid the support, spacing, locking and guiding of the board within electronic applications.
– Support and stabilize printed circuit boards
– Installed manually by hand and do not require any assembly equipment


Material : UL approved Polyamide 6.6, 94V-2
Color : Nature Color

庫存單位 CBS-5P 分類 , Features:

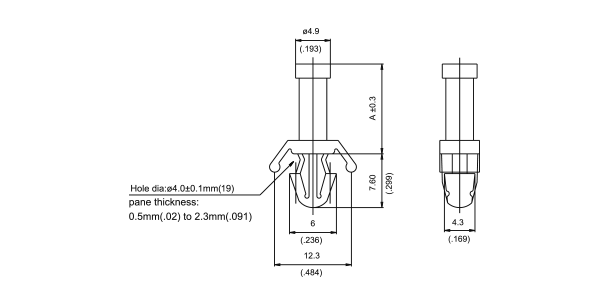

Part.Nospacing height
mminch
CBS-5P4.7±0.30.19±0.01
CBS-6P6.3±0.30.25±0.01
CBS-9P9.3±0.30.37±0.01
CBS-13P12.6±0.30.50±0.01
CBS-16P15.9±0.30.63±0.01
CBS-19P19.0±0.30.75±0.01
CBS-22P22.2±0.30.87±0.01
CBS-25P25.2±0.30.99±0.01
CBS-29P28.6±0.31.13±0.01
CBS-35P33.4±0.31.32±0.01
