All Products

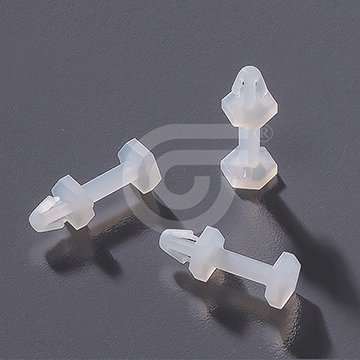

Mini Card Spacer Supports
Model : MCBS-4P
– PCB supports are ideal for aid the support, spacing, locking and guiding of the board within electronic applications.
– Install by hand no assembly tool required
– Insert the support through only one hole of board
– This button head for minimum protrusion can save more space
Material : UL approved Polyamide 6.6, 94V-2
Color : Nature Color
Specification Information
Certificate

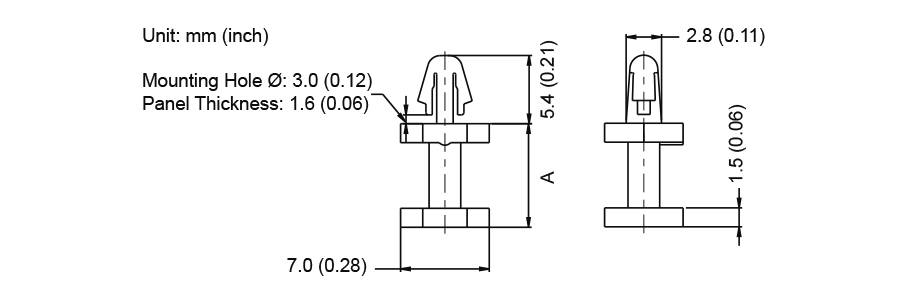

Specifications
Part.No | spacing height(A)±0.3mm(inch) |
---|---|
MCBS-4P | 4.1±0.3 |
MCBS-6P | 6.2±0.3 |
MCBS-8P | 8.2±0.3 |
MCBS-10P | 11.6±0.3 |
MCBS-14P | 15.8±0.3 |
