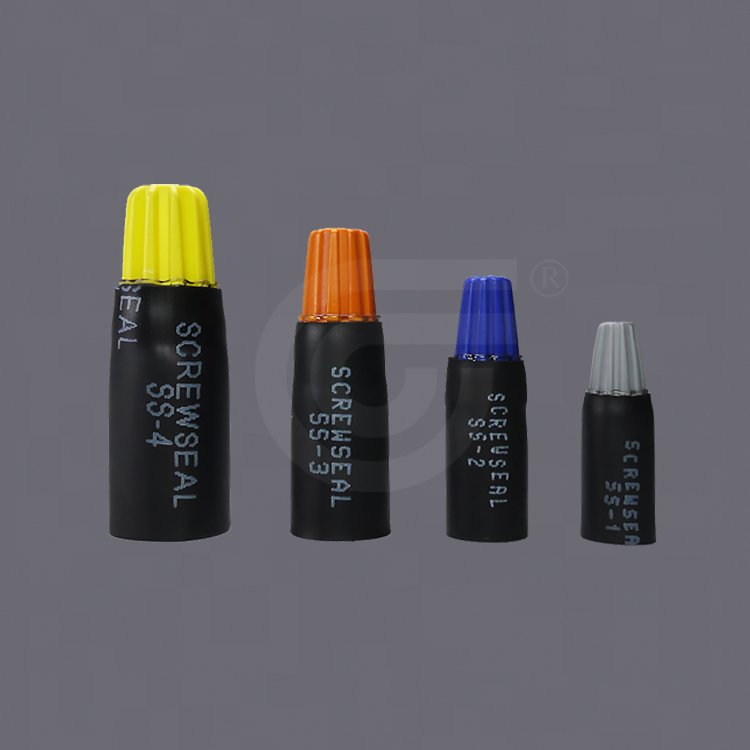

SCREWSEAL™ Waterproof Wire Connector

Model : SS

SCREWSEAL™ is a synergy product combining ORIENS’ competence with the Giantlok’s service offerings, it enables to troubleshoot and provide valued-added solution in industrial electrical wiring outdoor management and make it the only waterproof wire connectors available in the market.

SCREWSEAL™ is a wire connector designed in a way that integrates twist-on wire connectors and adhesive-lined heat shrink tubing. SCREWSEAL™ are perfectly designed for outdoor electrical wire splices, especially those exposed to water, wet and corrosive environments.  SCREWSEAL™ is ideal for outdoor electronic device protection such as surveillance, commercial display, and lighting system etc.

– SCREWSEAL™ tubing has a 4:1 shrink ratio. When recovered, the tubing will shrink to 25% of its as supplied diameter

– Five Color-coded for quick and easy size selection

– Avoids wires being pulled loose due to vibration or pulling

– Lower costs with secure, fast installation

– Copper to copper connections only


Material :

– Twist-on wire connector : UL approved PP + steel spring

– Adhesive-lined heat shrink tubing : PO + PA

Color : Please refer to the specification chart below

庫存單位 SS 分類 , Features:

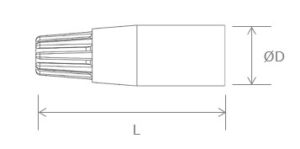

Part No.ColorDimensionSuitableTemp RatingVoltage
ØD mm
L mm
AWG
mm2
SS-1
Gray
93022-18
0.5-0.75
105°C (221°F)
300V
SS-2Blue
103622-14
0.5-2.5105°C (221°F)
300V
SS-3Orange124222-14
0.5-2.5
105°C (221°F)
600v
SS-4Yellow154818-100.75-6
105°C (221°F)
600v
SS-5Red
175022-10
0.75-6
105°C (221°F)
600v
