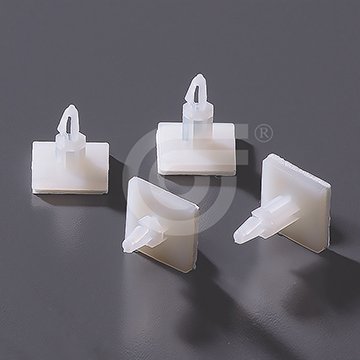

Self Adhesive PCB Supports
Model : ACBS-6M
– PCB supports are ideal for aid the support, spacing, locking and guiding of the board within electronic applications.
– Easy mounting with adhesive tape
– For PCB of 1.6mm(0.063inch)thick as well as 2mm(0.079inch)thick
– Mounting hole diameter:Ø4+/-0.1mm(0.158inch)
Material : UL approved Polyamide 6.6, 94V-2
Color : Nature Color
Specification Information
Certificate

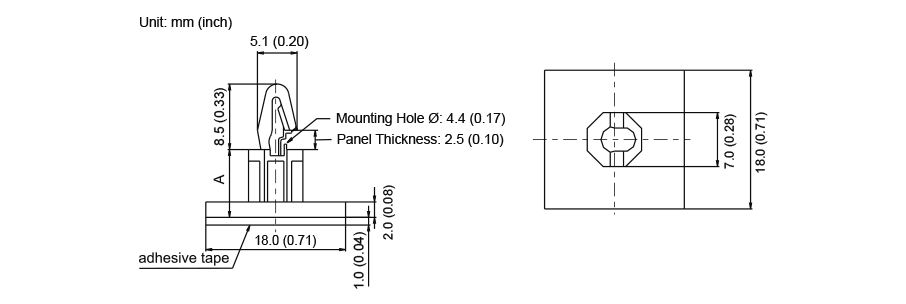

Specifications
| Part.No | spacing height (A) | Operating Temperature | ||
| mm | inch | °C | °F | |
| ACBS-6M | 5.6±0.3 | 0.22±0.01 | -40 ~ 85 | -40 ~ 185 |
| ACBS-9M | 8.7±0.3 | 0.34±0.01 | -40 ~ 85 | -40 ~ 185 |
| ACBS-12M | 11.9±0.3 | 0.47±0.01 | -40 ~ 85 | -40 ~ 185 |
