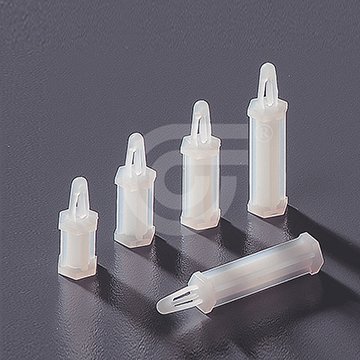

Bolt Head PCB Supports
Model : CBS-6S
– PCB supports are ideal for aid the support, spacing, locking and guiding of the board within electronic applications.
– Support with minimum chassis protrusion serves for limited space or slim line applications
– Head locks in boards, can be released by hand
– Screw locks support; steady and firm
Material : UL approved Polyamide 6.6, 94V-2
Color : Nature Color
Specification Information
Certificate
Specifications

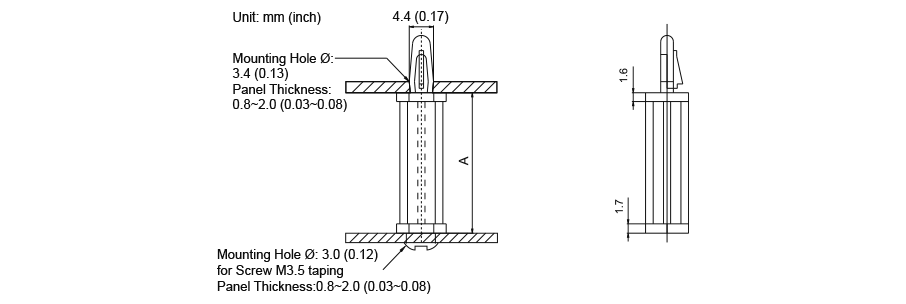

| Part.No | spacing height(A) | Operating Temperature | ||
| mm | inch | °C | °F | |
| CBS-6S | 6.5±0.3 | 0.26±0.01 | -40 ~ 85 | -40 ~ 185 |
| CBS-9S | 9.6±0.3 | 0.38±0.01 | -40 ~ 85 | -40 ~ 185 |
| CBS-13S | 12.9±0.3 | 0.51±0.01 | -40 ~ 85 | -40 ~ 185 |
| CBS-16S | 16.0±0.3 | 0.63±0.01 | -40 ~ 85 | -40 ~ 185 |
| CBS-19S | 19.3±0.3 | 0.76±0.01 | -40 ~ 85 | -40 ~ 185 |
| CBS-22S | 22.4±0.3 | 0.88±0.01 | -40 ~ 85 | -40 ~ 185 |
| CBS-25S | 25.5±0.3 | 1±0.01 | -40 ~ 85 | -40 ~ 185 |
| CBS-29S | 29±0.3 | 1.14±0.01 | -40 ~ 85 | -40 ~ 185 |
