Quick Disconnect Conduit Fittings
Model : FCG
Conduit fittings or adaptors are used for connecting conduit together to correctly direct the conduit to the proper location.
-Push-in lock design makes connection and disconnection quick and energy-saving
-Simple dismounting the conduit from adaptor by pressing the snap-in sleeve
-Smallest outer dimensions to be used under confined conditions
-For machine, train, elevator…etc., where the maintenance need to be quick and perfectly done
Material : UL Approved Polyamide 6.6, UL94 V2
Color : Black
Specification Information
Certificate
Specifications

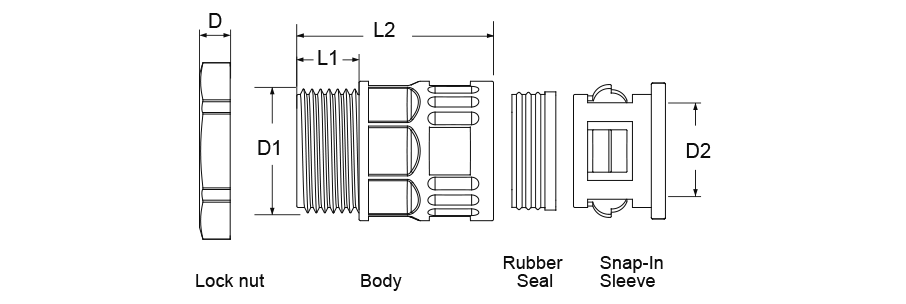

| Part No. | thread(PF) | Suitable conduits | D mm | D inch | D1 mm | D1 inch | D2mm | D2 inch | L1 mm | L1 inch | L2 mm | L2 inch |
| FCG-12 | 1/2” | NFC-12 | 5.6 | 0.22 | Ø20.8 | 0.82 | Ø16 | 0.63 | 9.5 | 0.37 | 34.5 | 1.36 |
| FCG-17 | 1/2” | NFC-17 | 6.5 | 0.26 | Ø20.8 | 0.82 | Ø22 | 0.87 | 11.7 | 0.46 | 40 | 1.57 |
| FCG-23 | 3/4” | NFC-23 | 6.5 | 0.26 | Ø26.3 | 1.04 | Ø29.2 | 1.15 | 13.5 | 0.53 | 44.2 | 1.74 |
| FCG-28 | 1” | NFC-28 | 7.5 | 0.3 | Ø33.1 | 1.3 | Ø35.6 | 1.4 | 13.5 | 0.53 | 46.3 | 1.82 |
| FCG-36 | 1-1/4” | NFC-36 | 7.5 | 0.3 | Ø41.5 | 1.63 | Ø43.3 | 1.7 | 17.4 | 0.69 | 50.4 | 1.98 |
| FCG-48 | 2” | NFC-48 | 8.5 | 0.33 | Ø59.5 | 2.34 | Ø55 | 2.17 | 15.5 | 0.61 | 51.5 | 2.03 |
