Cable Glands
Model : M
A cable gland is a device designed to attach and secure the end of an electrical cable to the equipment. It used throughout a number of industries in conjunction with cable and wiring used in electrical instrumentation and automation systems.
– Time saving, cable can be easily once inserted into through the gland without dismantling the parts.
– Suggested clearance hole for non-threaded mounting.
– Suitable for fixing wires of machines,electrical applications, mechanical control boards/ boxes.
– Short time to 140°C (284°F)
Material : UL Approved Polyamide 6.6, UL94 V2 + Washer: EPDM
Color : light grey, black (upon request), grey (upon request)
Application : Energy, Automation, Rail Transpotation, Electrical Wiring
庫存單位 M 分類 Cable Glands, Cable Protection
Specification Information
Certificate
Specifications

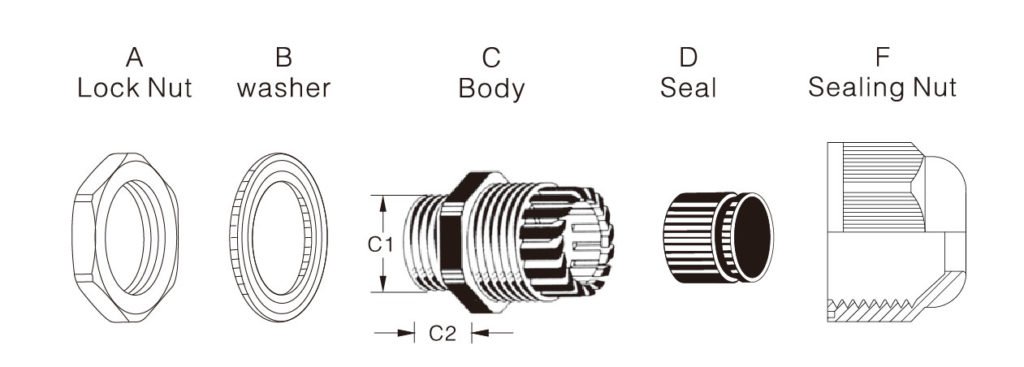

Part No. | Thread O.D C1 | Thread Lenth C2 |
M12 | 12.5 | 8 |
M16 | 15.2 | 8.5 |
M20 | 18.6 | 9 |
M25 | 20.4 | 10 |
M32 | 22.5 | 10 |
M40 | 28.3 | 12 |
M50 | 37 | 15 |
M63 | 47 | 15 |
